TYPE B Air Casters for Heavy Load Moving
Modular air caster units from 3.2 T to 15 T per module. Combine 4, 6 or more units for sets handling 12 T to 90 T with 360-degree rotation and low-friction positioning.
Product Overview

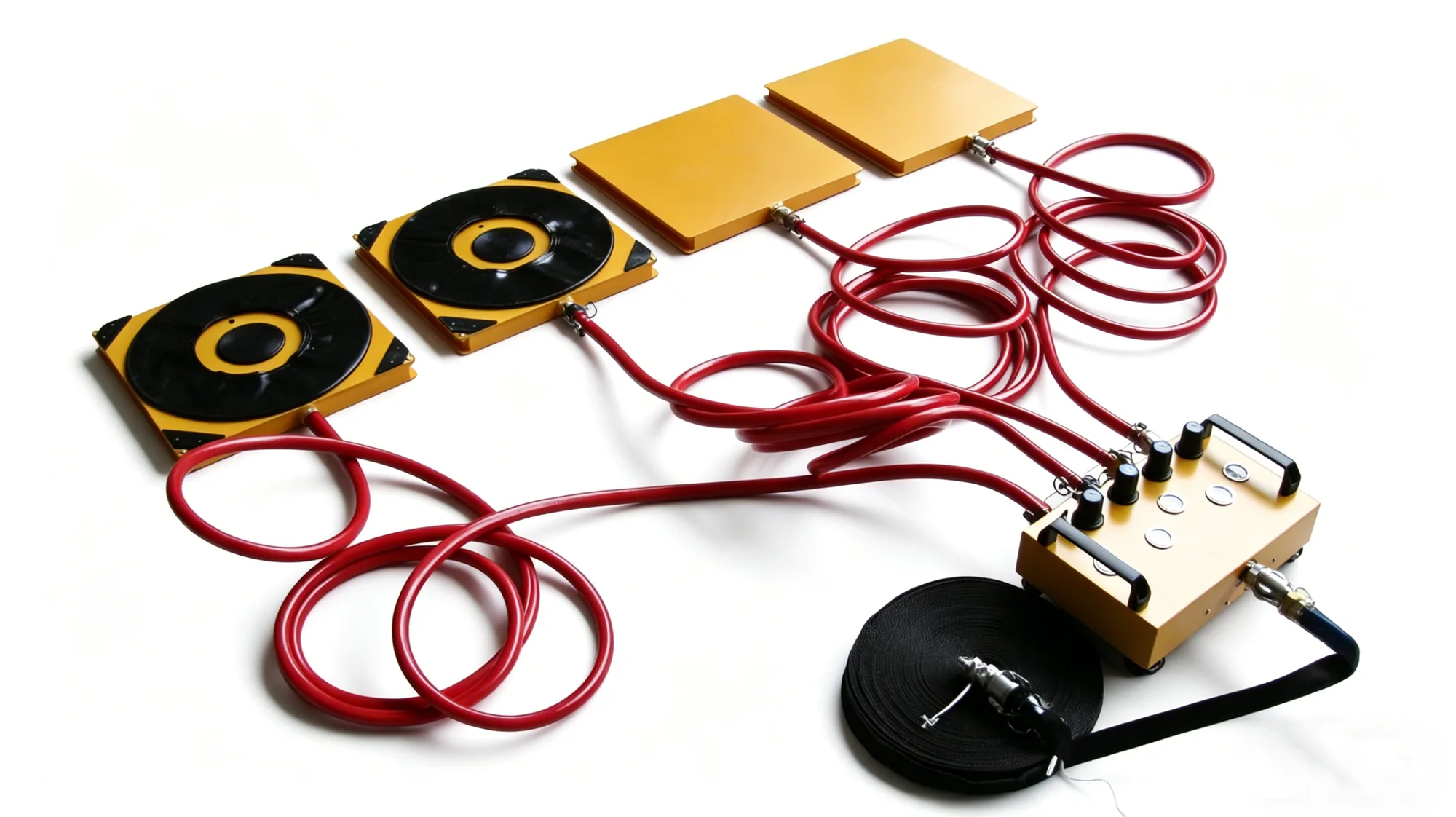

TYPE B air casters are the standard modular air film units in our range. Each module carries 3.2 T to 15 T and uses a flexible air cushion that forms a thin air film between the cushion and the floor. Because the load floats on air, moving force drops dramatically - moving resistance depends on the load, surface and air supply - with movement control and operator requirements determined by the application.
Units are combined in sets of 4, 6, 8 or more according to load weight, equipment footprint and center of gravity. This modular approach keeps a small inventory compatible with many machine sizes.
Load Capacity & Performance
- 3.2 T to 15 T per individual air caster module
- Rated set capacities are listed by model below; confirm the selected module count and load distribution
- 360-degree rotation and omnidirectional movement
- Main air supply: reference 7–12 kgf/cm² and 3.5–20 m³/min by model. Cushion pressure is separately regulated; confirm the selected manual.
- Precise positioning with floor suitability reviewed
Technical Specifications
| Model | Single Unit Load | Rated Set Load (configuration below) | Modules per set | Module Size (mm) | Air Flow | Main air supply pressure (kgf/cm²) |
|---|---|---|---|---|---|---|
| HC-QD380B | 3.2 T | 12 T | 4 | 380 x 380 x 50 | 3.5 m3/min | 7–12 (confirm for model) |
| HC-QD380B6 | 3.2 T | 19.2 T | 6 | 380 x 380 x 50 | 5.5 m3/min | 7–12 (confirm for model) |
| HC-QD540B | 7 T | 28 T | 4 | 540 x 540 x 50 | 6.5 m3/min | 7–12 (confirm for model) |
| HC-QD540B6 | 7 T | 42 T | 6 | 540 x 540 x 50 | 10 m3/min | 7–12 (confirm for model) |
| HC-QD686B | 10 T | 40 T | 4 | 686 x 686 x 50 | 9 m3/min | 7–12 (confirm for model) |
| HC-QD686B6 | 10 T | 60 T | 6 | 686 x 686 x 50 | 15 m3/min | 7–12 (confirm for model) |
| HC-QD914B6 | 15 T | 90 T | 6 | 914 x 914 x 50 | 20 m3/min | 7–12 (confirm for model) |
T denotes metric tons. Listed set ratings are model specifications, not a calculation of usable capacity from total weight alone. Main supply pressure differs from regulated cushion pressure. Follow the confirmed model manual; never apply main supply pressure directly to a cushion.
Published model data is a selection reference; confirm pressure, flow, module count and rated capacity in the quotation. Models ending B6 or GF6 use six modules. Other listed models use four modules. Confirm the rated set capacity, load distribution and operating conditions for the selected model.
Structure & Components
- Air cushion (air film element) with replaceable wear surface
- Aluminum or steel body plate with connection interfaces
- Air inlet port and quick coupling for hose connection
- Load distribution plate matched to equipment base
- Optional mechanical locking or parking feet for stable standstill
- Optional height adjustment shims for uneven load bases
Floor Requirements
Air casters require a smooth, flat and sealed floor with joints and gaps reviewed for the selected cushion and route. Epoxy-coated concrete, polished concrete and steel plate flooring are recommended. Rough, cracked or unsealed surfaces prevent the air film from forming and must be prepared before installation. We review your floor condition and provide preparation guidance before quotation.
Typical Applications
- Heavy machinery installation and machine tool relocation
- Transformer and generator relocation
- Aerospace component assembly and section transfer
- Semiconductor and precision equipment positioning
- Mold, die and forging press movement
- Factory relocation and production line reconfiguration
Customization Options
Systems can be configured to match your equipment and site conditions. Typical customization items:
- Load capacity from 3.2 T per unit to 1500 T complete platform systems
- Module size and quantity to match equipment footprint and center of gravity
- Air supply configuration (compressor, control console, hose reel) sized to your route
- Control mode: manual, remote wireless or synchronized multi-unit control
- Application-specific materials and surface treatment, subject to engineering review
- Custom platform frame, tooling interface and positioning fixtures
Quality Control & Test Support
Confirm the test conditions and documentation for the selected model and order: load review, operation video, inspection record, manual and packing information. Agree any required acceptance test before production.
Air caster equipment demonstration. Ask for a video and test conditions for your selected model; this general clip is not a load acceptance record.
FAQ
Plan Your Heavy Load Move
Review system selection, floor condition and air supply before requesting a configuration.
Plan Your TYPE B Air Casters Project
Start with your load weight, equipment dimensions and moving route. Share what you know; we will clarify the details needed for a quotation.
Air caster order quantity & lead time
Minimum order: 1 set. For air caster models rated at 60 metric tons or below, normal lead time is 5–10 working days. Custom model lead times are confirmed by project.
Confirm the production start date, included components and delivery schedule in your quotation. Shipping time depends on destination and transport method. These air caster terms do not specify lead times for skate movers, stair climbers or toe jacks.
