Battery-powered machinery movers for short-distance industrial transport. Select the powered mover and supporting skates around your load, route and floor conditions.
Product Overview
Cx Series electric skate movers use battery-powered dual-motor drive for moving supported industrial loads on firm, level surfaces. Wired or wireless operation depends on configuration. Nominal traction capacity, supported load and auxiliary skate ratings are separate checks; confirm the supplied machine nameplate and system layout.
Select the Mover and the Support System
- Cx-10T through Cx-60T nominal traction models in the supplied manual
- Battery-powered dual-motor drive; configuration varies by model
- Firm, clean, dry and level industrial floors
- Supporting skate quantity and positions reviewed against weight distribution
- Gradients require specific approval for the supplied model
- Do not use as a lifting device or to carry people
Cx Series Technical Specifications
Reference: OS Industrial Cx Series Operation and Safety Manual, Edition 1.0 (2026). Confirm the final configuration against the machine nameplate and order specification.
| Model | Nominal traction | Battery | Motor power |
|---|---|---|---|
| Cx-10T | 10 t | 48 V / 30 Ah | 500 W × 2 |
| Cx-20T | 20 t | 48 V / 60 Ah | 750 W × 2 |
| Cx-25T | 25 t | 48 V / 60 Ah | 1000 W × 2 |
| Cx-30T | 30 t | 48 V / 60 Ah | 1200 W × 2 |
| Cx-40T | 40 t | 48 V / 120 Ah | 1500 W × 2 |
| Cx-50T | 50 t | 48 V / 120 Ah | 2000 W × 2 |
| Cx-60T | 60 t | 48 V / 120 Ah | 3000 W × 2 |
Nominal traction is not a lifting capacity or a rating for each support point. The powered unit, auxiliary skates, floor and load distribution must be reviewed as a complete system.
Structure & Components
- Q355 manganese steel load platform and frame
- Brushless hub drive wheels (4 or 8 depending on model)
- 48V or 60V lithium / lead-acid battery pack
- Wireless remote control with emergency stop
- Hydraulic or mechanical lifting option on custom models
- Optional guide rollers, ramps and load fixtures
Floor Requirements
Air casters require a smooth, flat and sealed floor with joints and gaps reviewed for the selected cushion and route. Epoxy-coated concrete, polished concrete and steel plate flooring are recommended. Rough, cracked or unsealed surfaces prevent the air film from forming and must be prepared before installation. We review your floor condition and provide preparation guidance before quotation.
Typical Applications
- Machine tool and press relocation
- Mold and die handling in stamping plants
- Heavy equipment moving in restricted spaces
- Transformer and generator movement
- Production line reconfiguration
- Warehouse to shop-floor transfer
Customization Options
Systems can be configured to match your equipment and site conditions. Typical customization items:
- Load capacity from 3.2 T per unit to 1500 T complete platform systems
- Module size and quantity to match equipment footprint and center of gravity
- Air supply configuration (compressor, control console, hose reel) sized to your route
- Control mode: manual, remote wireless or synchronized multi-unit control
- Application-specific materials and surface treatment, subject to engineering review
- Custom platform frame, tooling interface and positioning fixtures
Quality Control & Test Support
Confirm the test conditions and documentation for the selected model and order: load review, operation video, inspection record, manual and packing information. Agree any required acceptance test before production.

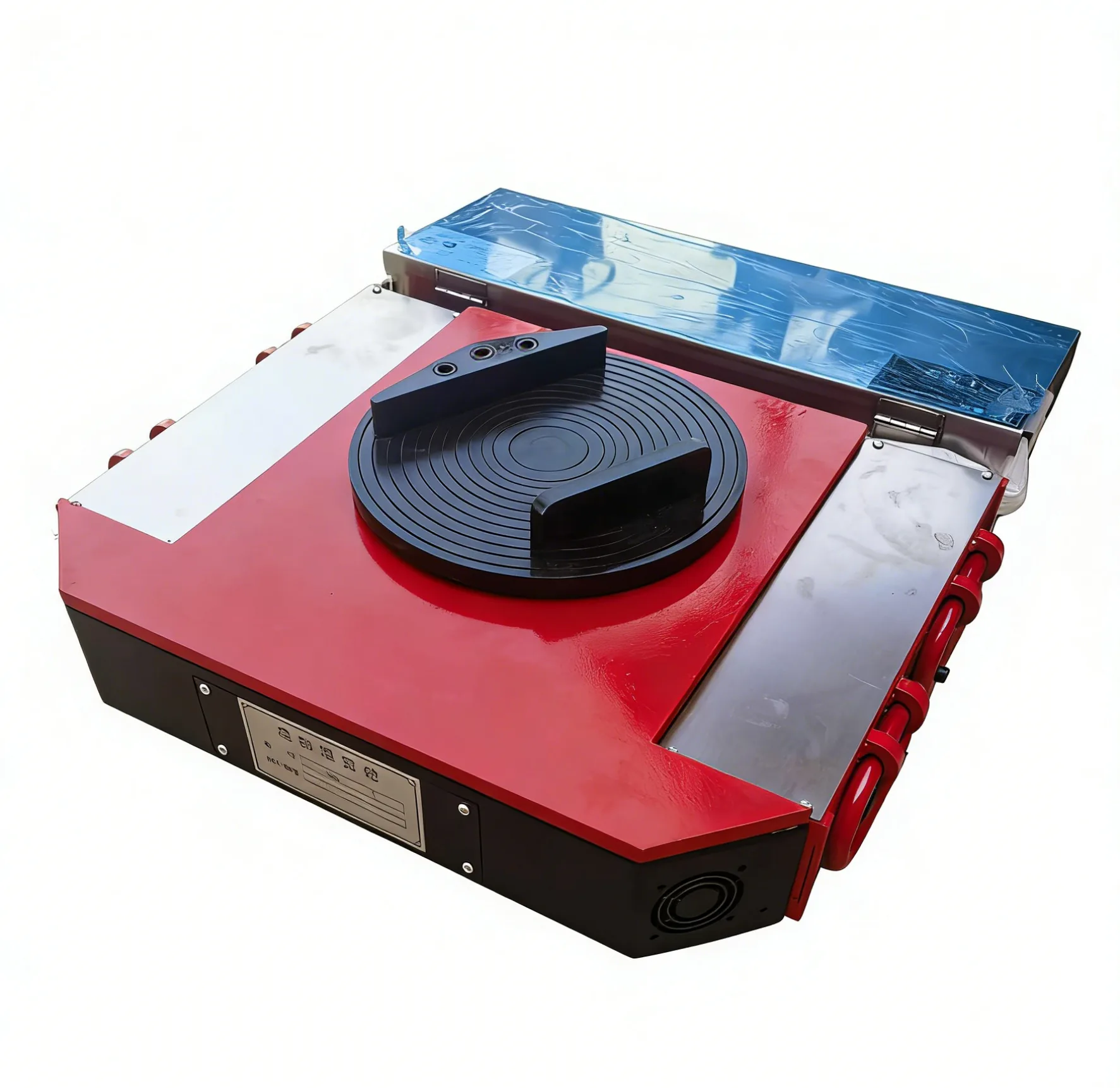

Remote control electric tank car moving a heavy load
